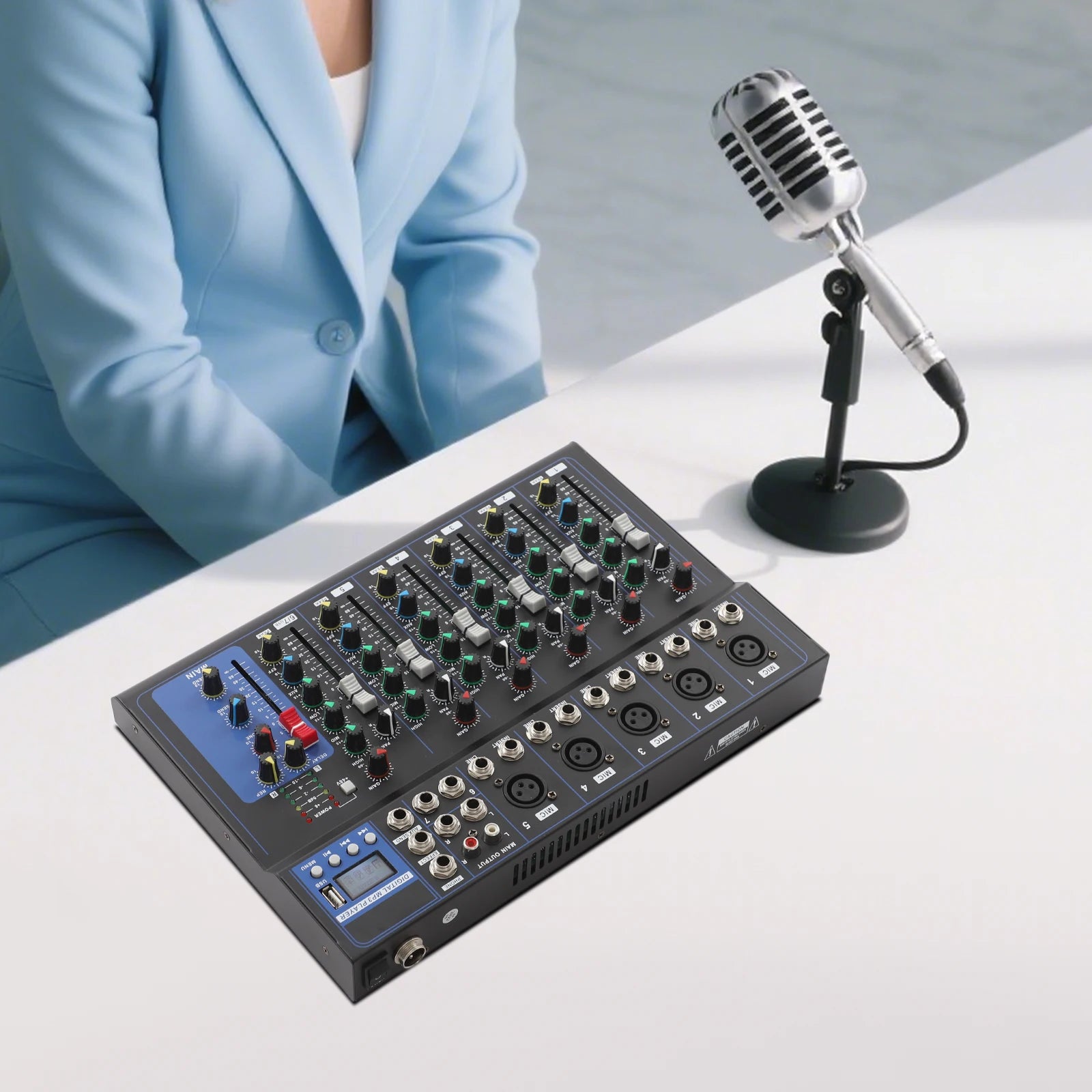

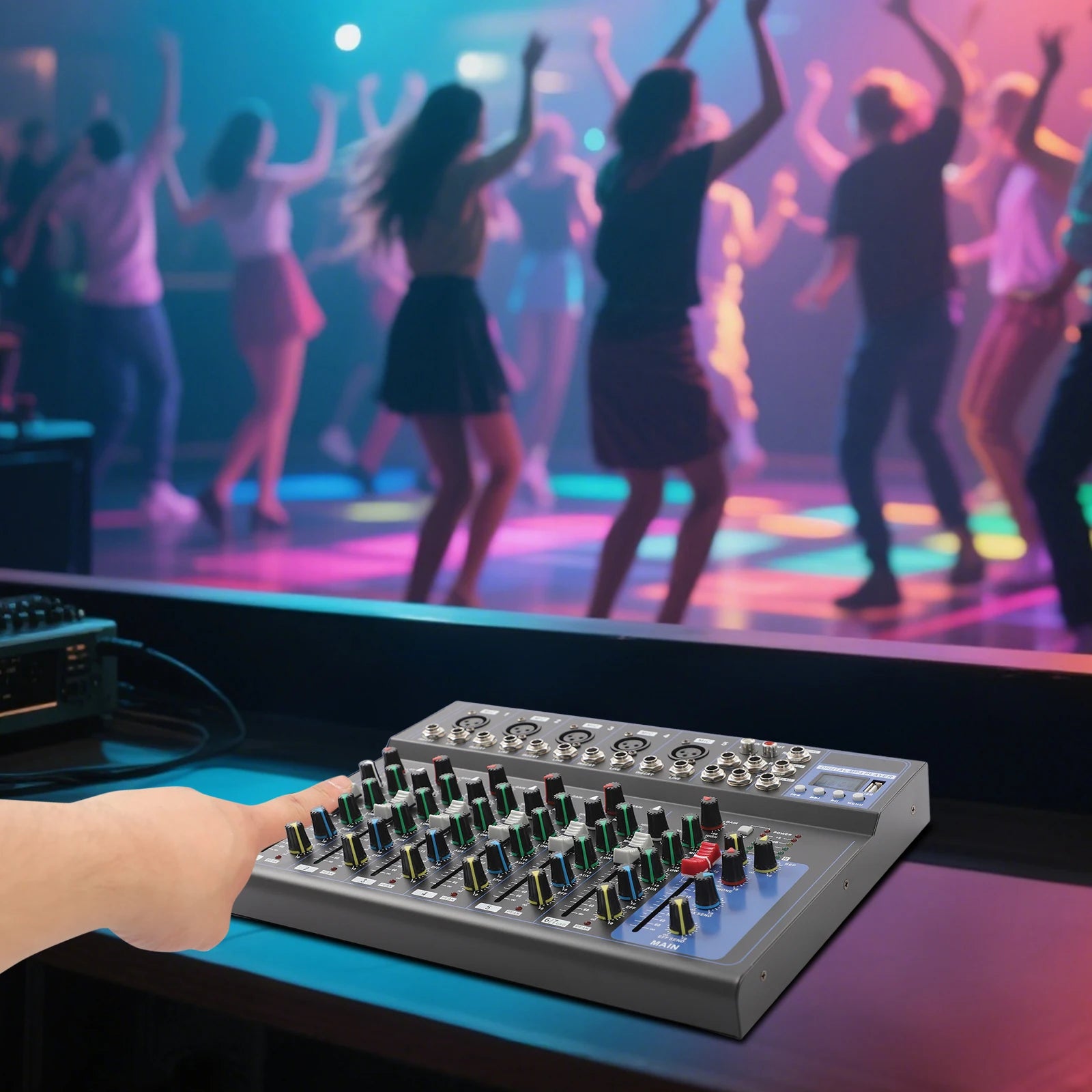

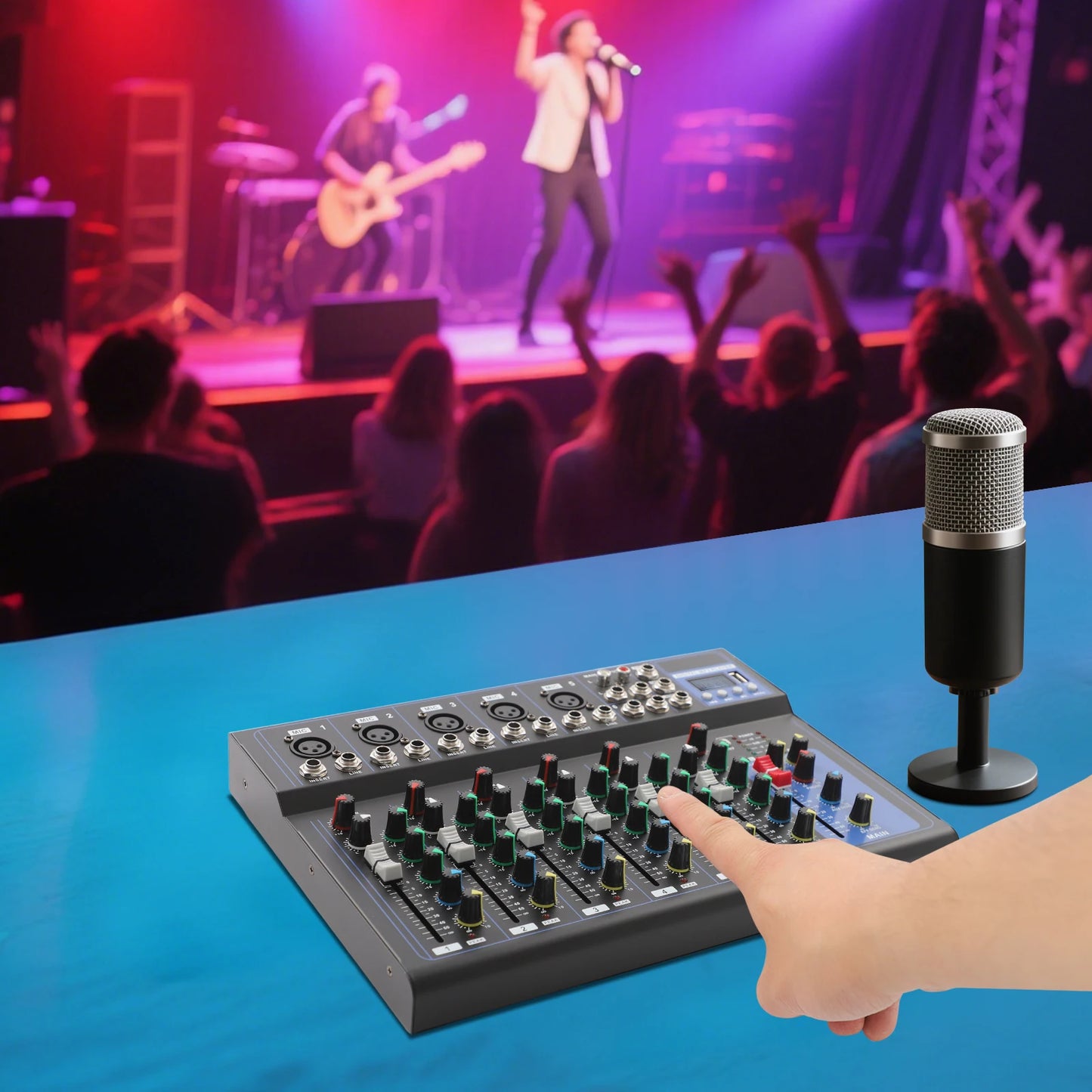

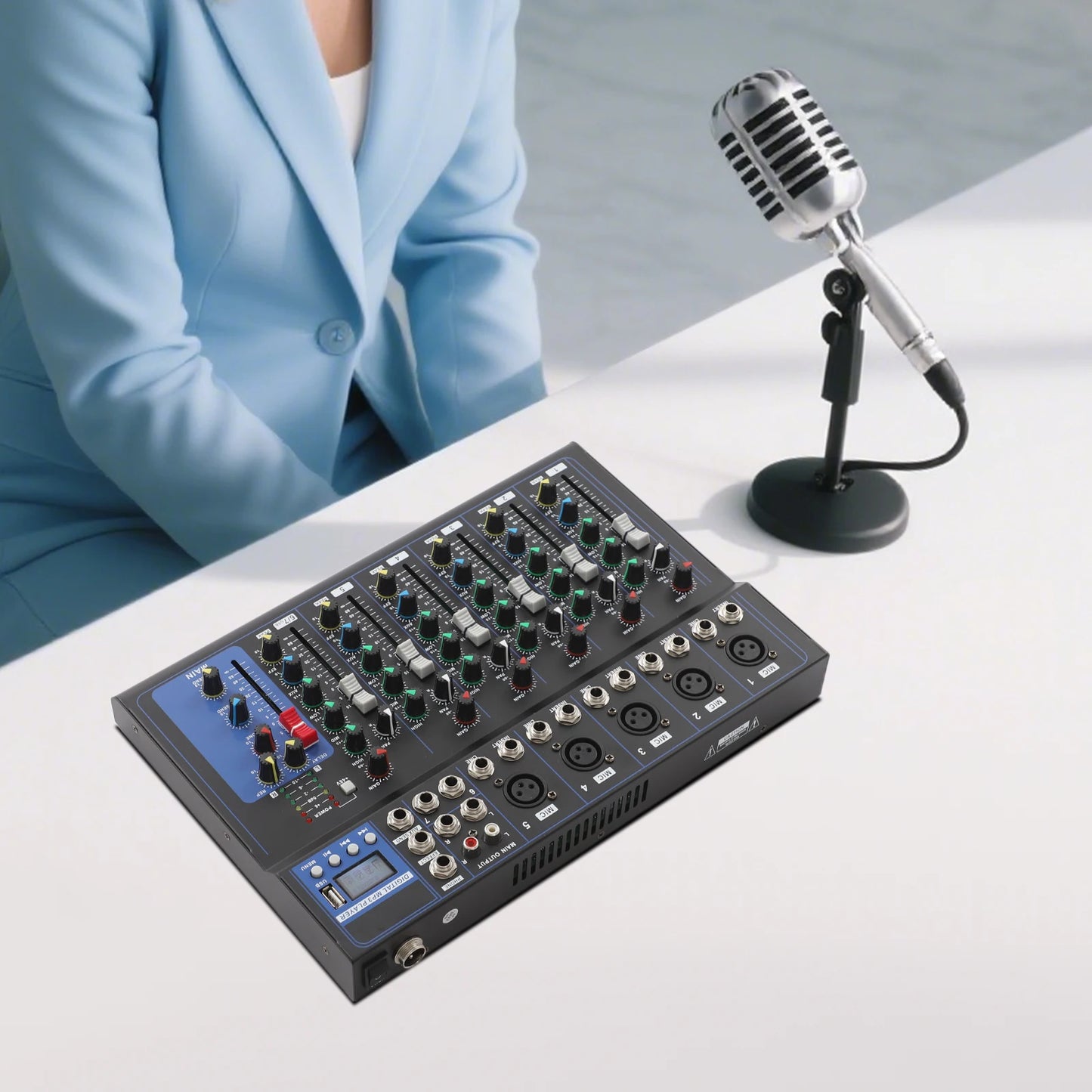

It is suitable for home KTV, music recording, webcasting, campus events, broadcasting, weddings, conferences, bars, stage performances, music restaurants, music festivals, recording studios, parties, and so on.

Specification/EU

Color: Black
Material: Metal
Mounting Type: Tabletop
Assembly Required: No
Power Source: Corded
Plug Type: EU Standard

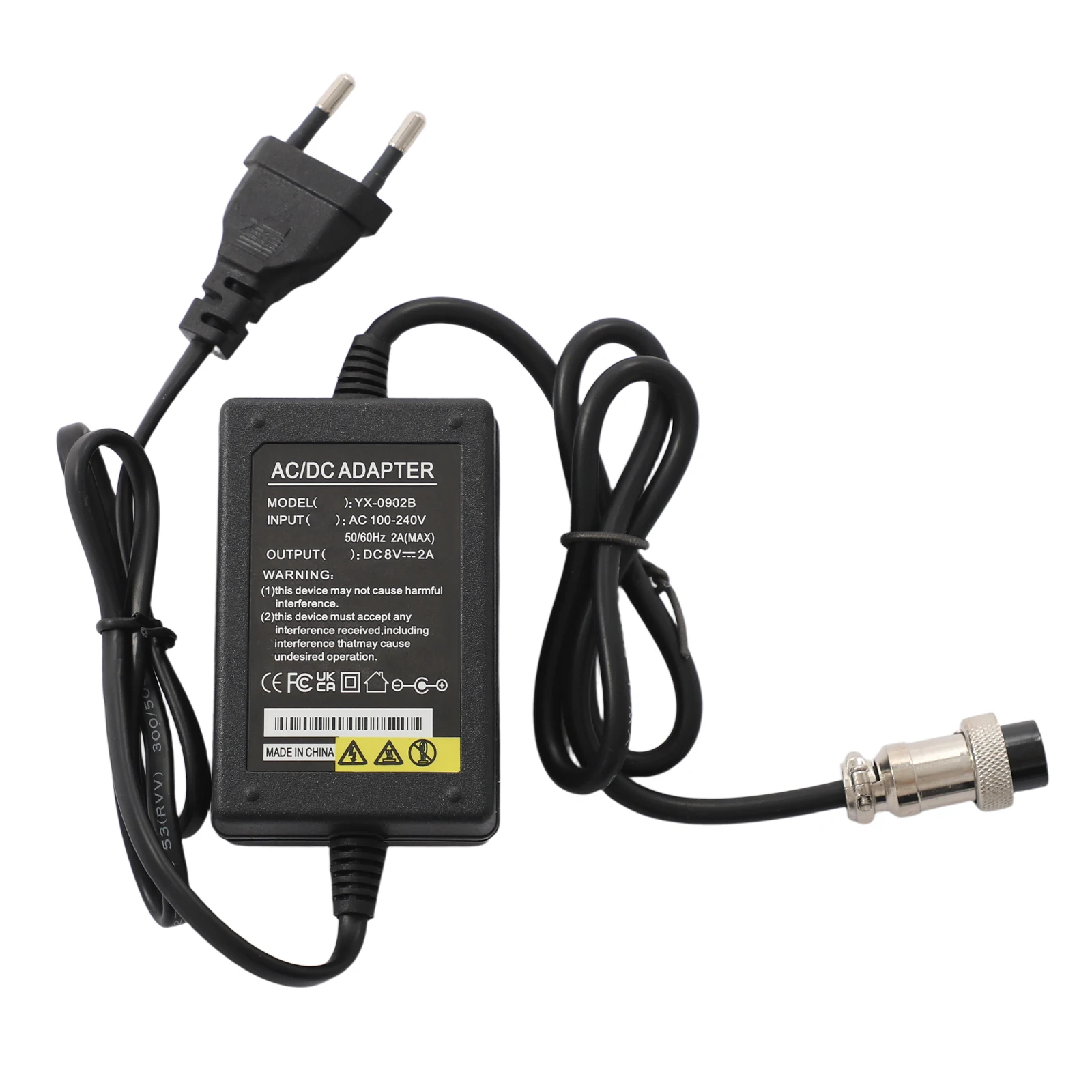

Adapter Input: AC100-240V, 50/60Hz, 2A(MAX)
Adapter Output: DC8V, 2A
Number of Channels: 7
Max. Input Level: +24dBu(MIC/Line)
Max. Output Level: +26dBu
Main Level Meter: 5-segment Light-emitting Diode
Common Mode Rejection Ratio (MIC 1kHz): ＞75db
Frequency Response: 20Hz to 20KHz ±0.5dB
Total Wave Distortion(THD+N): ＜0.01%(Channel Input to Mix Output)
Crosstalk(1kHz): ＞85dB
Noise (22Hz to 22KHz): Equivalent Input Noise -116dBu, Residual Output Noise <-80dBu

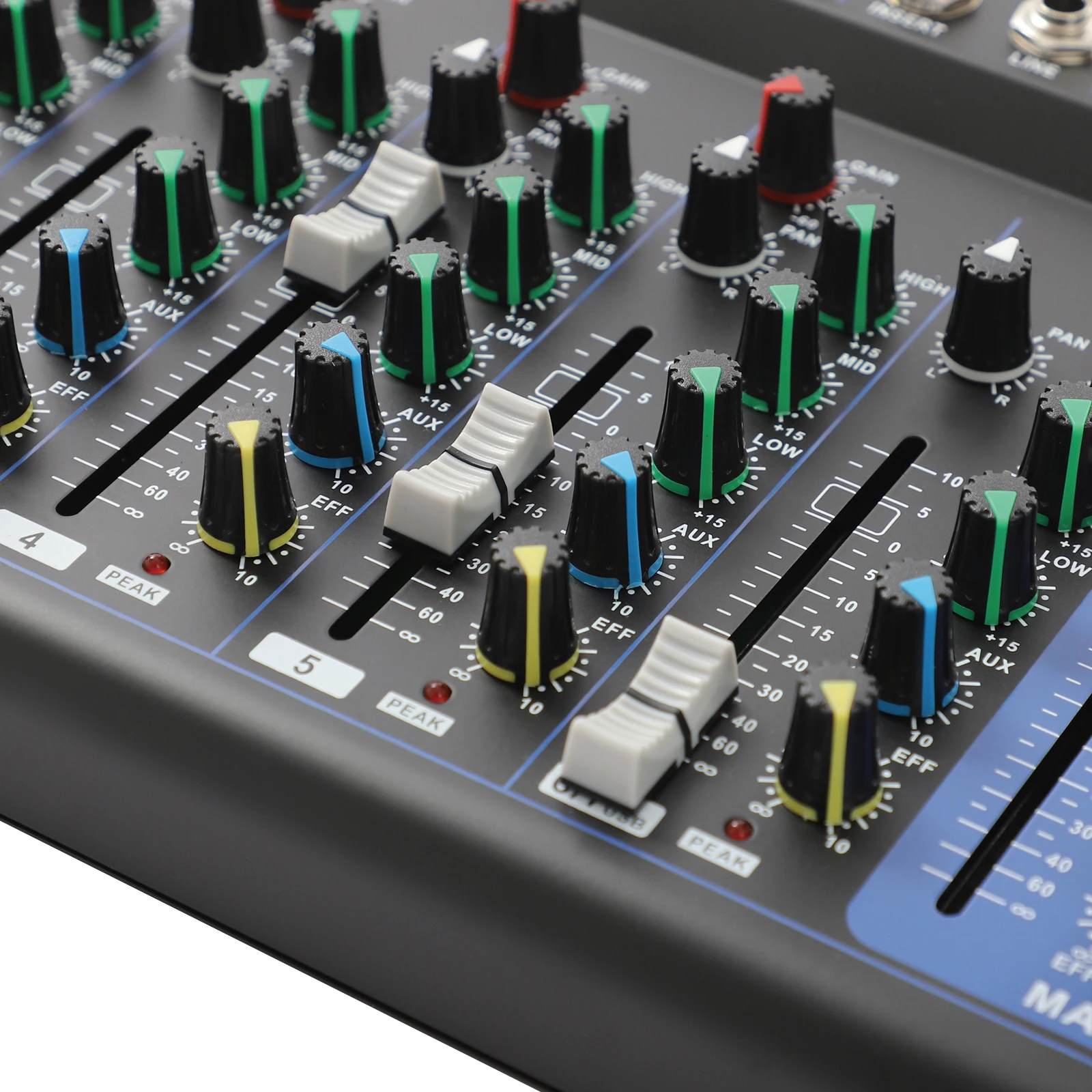

Mono/Stereo Channel EQ: High Frequency, Broom Type, +/-15dB, 12KHz; Low Frequency, Broom Type, +/-15dB, 80KHz; Hi-Mid Frequency, Peak Valley Type, +/-15dB, 2.5KHz
Stereo: TRS Unbalanced, Tip Hot , 10K ohm, Sensitivity -40-+14dBU
L/R Output: TRS Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu
FX/AUX Output: TRS, Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu
Headphones: TRS, Tip L, 30 to 600 ohm Headphones Recommended
Mono Channel:
XLR Balanced, Pin 2 Hot, 2K ohm, Sensitivity -60 to +14dBu
TRS Balanced, Tip Hot, 10K ohm, Sensitivity -40 to +14dBu
XLR Phantom Power + 48V
Product Size: 33*23*3.7cm/13*9.06*1.46 in
Package Size: 38*30*8cm/14.96*11.81*3.15in
Gross Weight: 2.7kg/5.95lbs
Net Weight: 2.57kg/5.67lbs

Specification/us

Color: Black
Style: Minimalist
Material: Iron
Number of Channels: 7

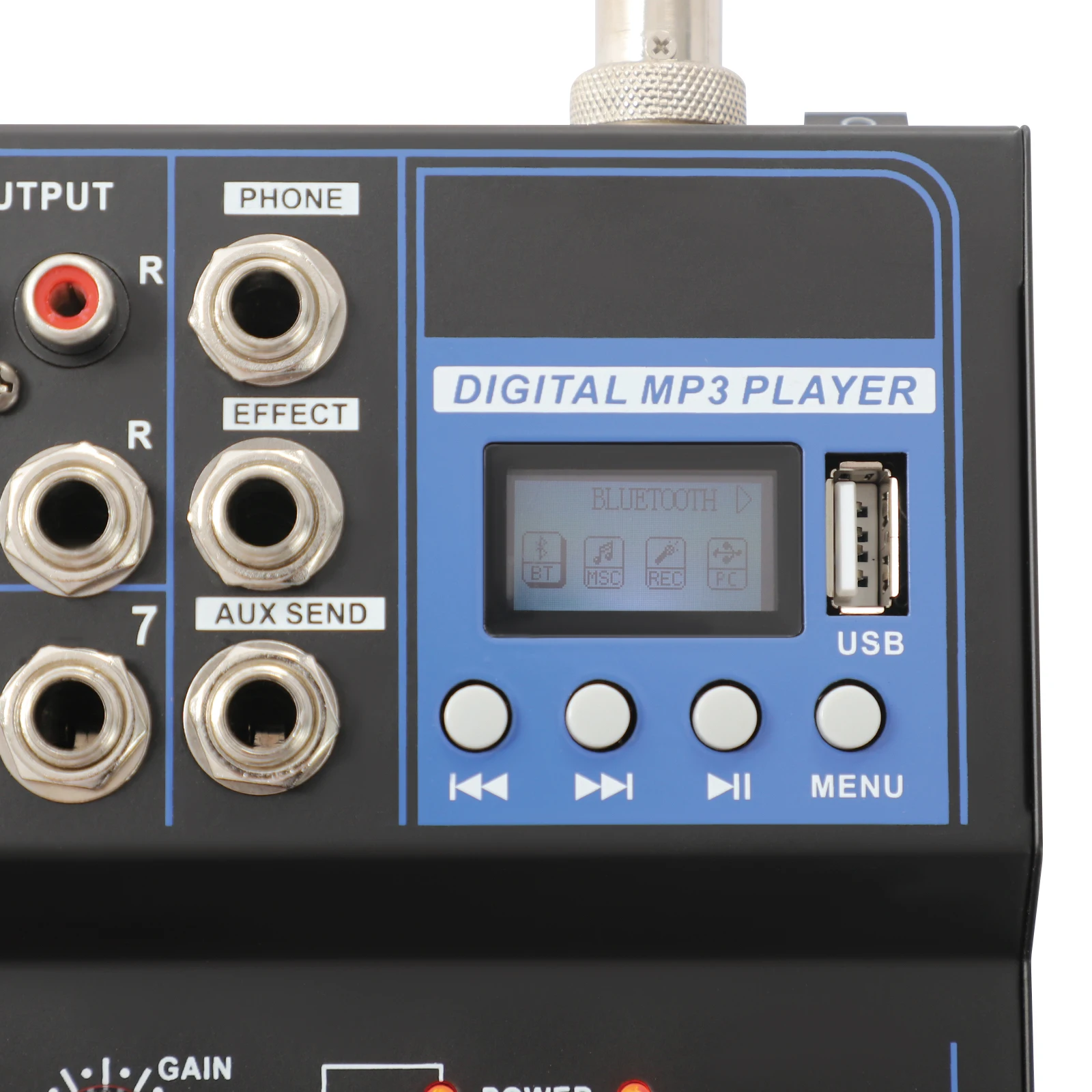

Connectivity Technology: Interface, USB, Bluetooth
Plug Voltage: U.S. Plug 110V
Microphone Maximum Input Level: +24dBu
Maximum Line Input Level: +24dBu
Maximum Output Level: +26dBu
Main Level Meter: 5-segment Light-emitting Diode
Frequency Response: 20Hz - 20kHz ± 0.5dB
Common Mode Rejection Ratio (MIC 1KHz): >75dB
Total At-wave Distortion (THD+N): <0.01% (Channel Input to Mix Output)
Crosstalk (1kHz): >85dB
Noise (22Hz - 22KHz): Equivalent Input Noise -116dBu Residual Output Noise <-80dBu
Mono/Stereo Channel EQ: High Frequency, Broom Type, +/-15dB,12KHz
                                            Low frequency, Broom Type, +/-15dB,80KHz
                                            High/Midrange, Peak/Valley Type, +/-15dB,2.5KHz
Mono: XLR Balanced, 2-pin Hot end, 2Kohm Sensitivity -60 to +14dBu
            TRS Balanced, Tip Hot End 10Kohm Sensitivity -40 to +14dBu
            XLR Phantom Power +48V
Stereo: TRS Unbalanced, Tip Hot End 10Kohm Sensitivity -40 to +14dBu
L/R Output: TRS, Unbalanced, Tip Hot End, <75ohm, -2dBu, +18dBu Max
FX/AUX Output: TRS, Unbalanced, Tip Hot End, <75ohm,-2dBu,+18dBu Max
Headphones. TRS, tip L, Recommended for Headphones from 30 to 600ohm
Product Size: 33*23*3.7cm/ 12.99*9.05*1.46in
Package Size: 38*8*30cm/ 14.96*3.15*11.81in
Net Weight: 2.58kg/ 5.69lbs
Gross Weight: 2.85kg/ 6.28lbs

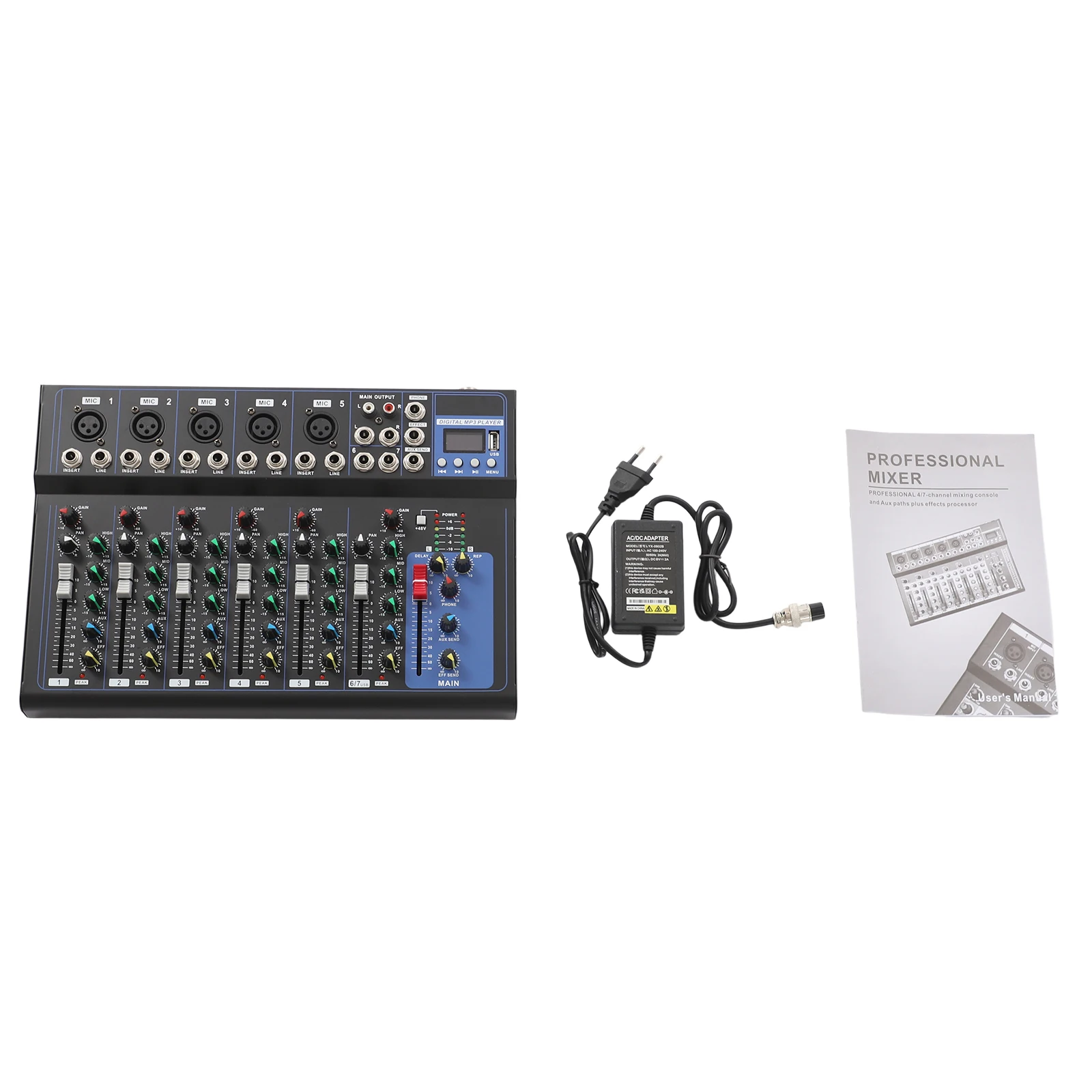

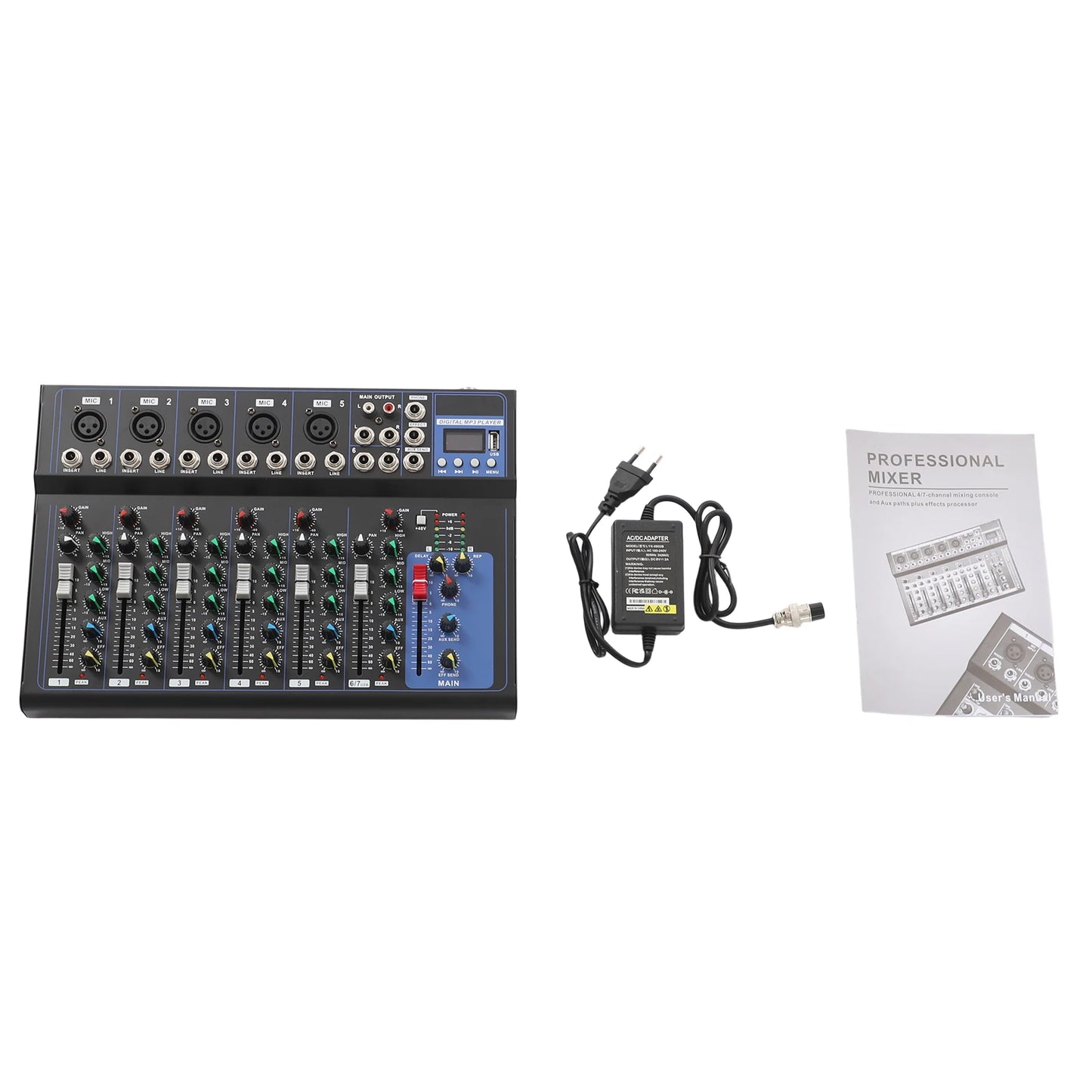

Package Included

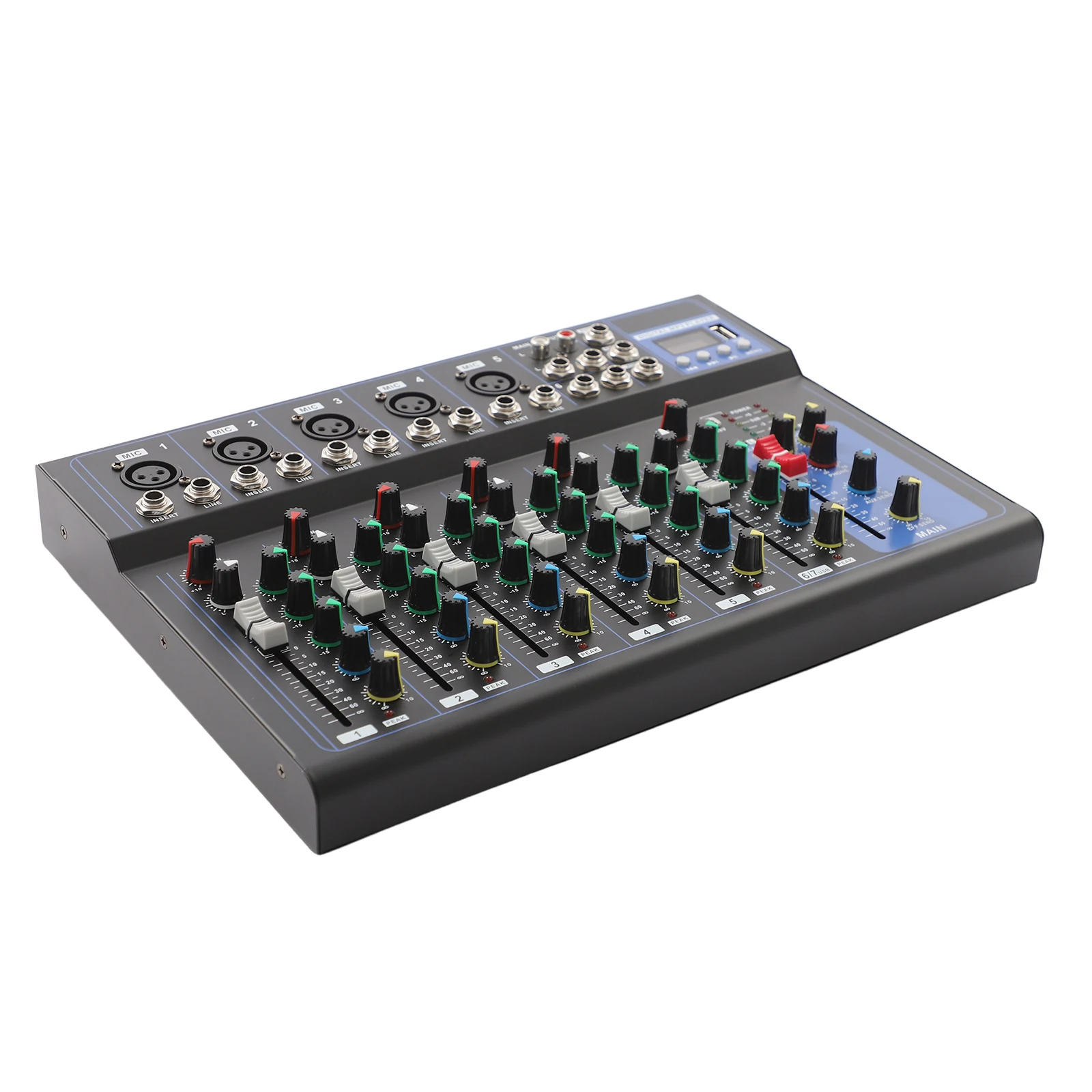

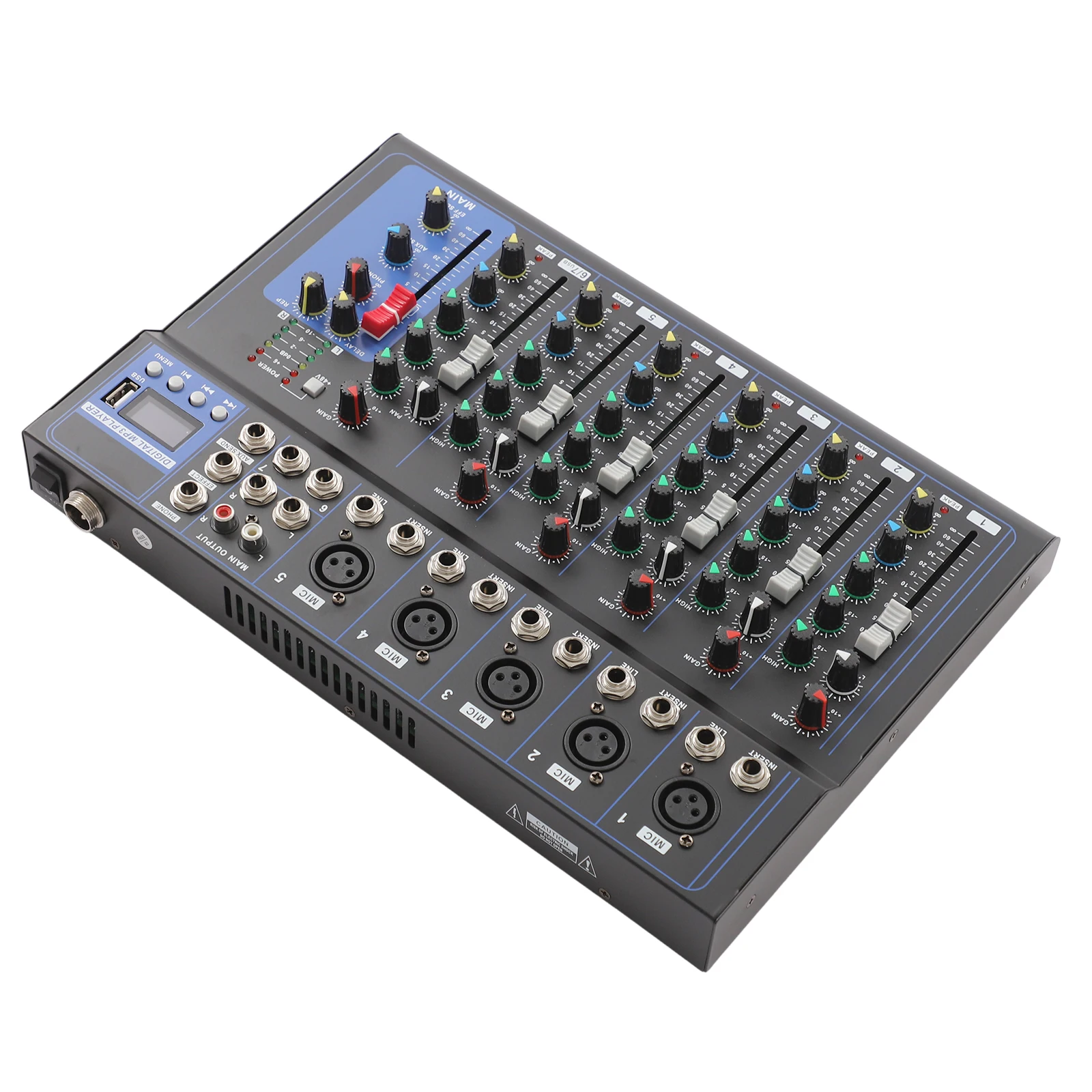

1* 7-channel Audio Mixer
1* Power Adapter
1* English Manual

Notes
1.When connecting an electric instrument, condenser speaker, etc.(not included), please turn on the switch after connecting the instrument(turn off the switch before disconnecting).
2.Please minimize all volume levels before connecting or disconnecting external devices.
3.Please read the operating manual and product label completely before use. And pay particular attention to the safety instructions included.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
